SCRUB ABRASION AND WASHABILITY TESTER
Stok Kodu
AB6000- AB6010
Kategori
Ovalama, Aşındırma ve Yıkanabilirlik Test Cihazı
Product Description
The Scrub Abrasion and Washability Tester is used to test the resistence
ofpaint, varnish or coatings to scratching, wearing, and color loss due to
wet ordry abrasion, by simulating everyday wear from cleaning actions or
generaluse. The test is either used as a “pass or fail” test by testing to a
specifiednumber of strokes or defining the minimum number of strokes at
which acoating fails by checking at regular intervals. Abrasion scrub/
washabilityTest to perform an abrasion and washability test on coated
panels to definethe resistance of paint, varnish or related products to
scratching, wearingand colour loss due to wet or dry abrasion. Simulating
everyday wear fromcleaning actions or general use. The test is either
used as a “pass / fail” test bytesting to a specified number of strokes or
defining the minimum number ofstrokes at which a coating fails by
checking at regular intervals.
Flexible adaptation to many tests
The Scrub Abrasion and Washability Tester allows for the most
flexibleadaptation of the wide range of scrub, abrasion and washability
tests thatare in use. First the base apparatus has to be selected from

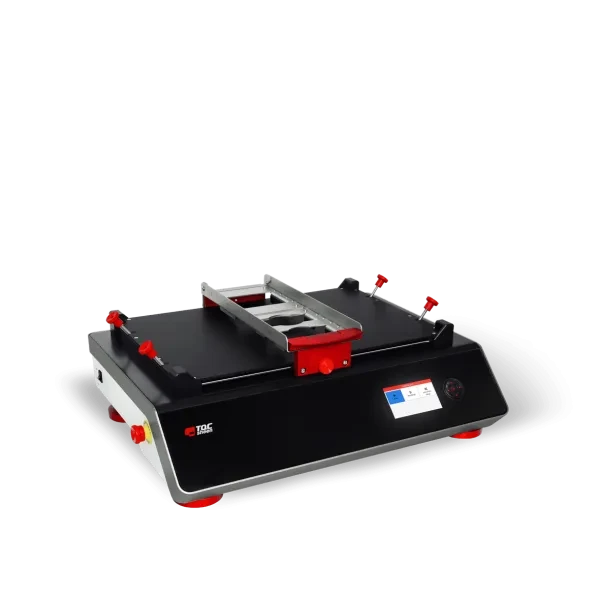

two models. TheScrub Abrasion and Washability Tester Basic (Art. Nr. AB6010)
without pumpsfor dry tests, and the Scrub Abrasion and Washability Tester

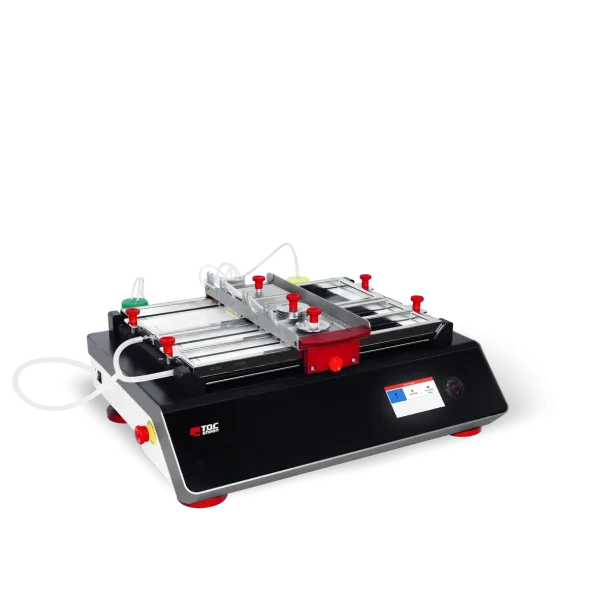

(Art. Nr. AB6000) with pumps for dry and wet tests. Each base unit iscompletely
flexible and allows for easy exchange of the tools used for testing.
A variety of tests are possible, with just small modifications to make thedevice
suitable for other tests. This modular system significantly decreases thecosts
for laboratories to comply to many standards.
In order to choose the right parts we refer to the Ordering Matrix and Standards
Configuration Table in this datasheet.
State-of-the-art-technology
The Scrub Abrasion and Washability Tester is driven by a micro-stepcontrolled
electro motor which allows precise and steady speed and sinuswave form
control. Operation is intuitive by means of a jog-dial switch and amulti-lingual
operating menu on a large illuminated display.
Operating is very easy with the Triple i operating interface. This unique
systemguides the operator through the interface of TQC Sheen lab-machines.
Ateach step of the multilingual operating menu the interface detects whichbuttons
are active and indicates these by means of an illuminated red centre.This results
in a very intuitive operating system which is enhanced withinformation on the machine’s display.
Features
• Preset range option
• Easy intuitive operating interface with Triple i Control(Intelligent Illumination Interface)
• Full color display
• Easy to update software
• Manual movement
• Compatible with a large range of accessories
Standards
DIN 53778, ASTM D2486, ASTM D4213, ASTM D4828,
ASTM D3450, ISO 11998,ASTM F1319, ISO 105X12,
Renault D431010, GME 60269, ECCA T11, EN 13523-11,
EN 60730-1 and EN 13300.
Scope of Supply
Standard supplied
• 24V adapter + Power Cable
• Manual
Only supplied with AB6000:
• Scrub Abrasion and Washability Tester
• Tubing
• Fluid containers
Only supplied with AB6010:
• Scrub Abrasion and Washability Tester Basic
Specifications
Technical Data
| Traverse speed: | 1 - 60 cycles per minute |
| Traverse speed accuracy: | + / - 1% of set speed |
| Stroke length: | 20 - 300 mm / 0.39 - 11.81 in |
| Stroke length accuracy: | + / - 0.01 mm |
| Pump flow rate: | 0.0 - 3.0 ml per minute / 0.0 - 0.79 GPH |
| Max. panel width: | 70 mm / 2.76 in |
| Max. panel width: | 350 mm / 13.78 in |
| Max. panel width: | 35 mm / 1.38 in |
Dimensions and Weight
| Depth: | 490 mm / 19.3 in |
| Depth with pumps: | 530 mm / 20.87 in |
| Width: | 640 mm / 25.2 in |
| Height: | 235 mm / 9.24 in |
| Mass: | 30 - 35 kg / 66.14 - 77.16 lbs (depending on model) |
Basic Unit
| Power Supply: | 24 VDC / 100 - 240 V / 50 - 60 Hz |
| Power consumption: | max. 90 Watt |
| Display: | 480 x 272 pixel TFT display |
| Control: | 5-key navigation switch (Mouse Keyboard optional) |
| Menu languages: | English, Spanish, Chinese, Polish,German, French, Italian, Japanese, Russian, Turkish |
Ordering Information
AB6000 Scrub Abrasion and Washability Tester
AB6010 Scrub Abrasion and Washability Tester Basic
Accessories
Choose your parts with the Ordering Matrix and the
Standards Configuration Table.
