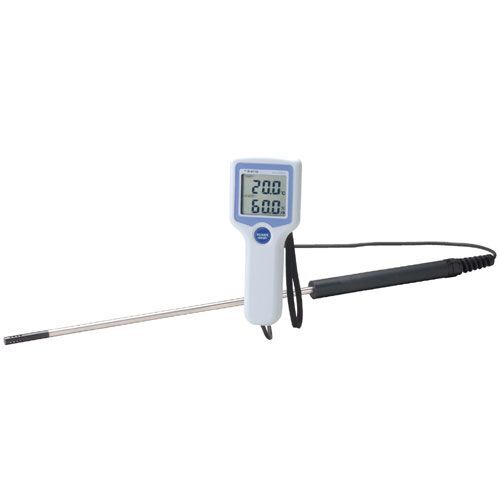

Digital Thermohygrometer with Penetration Probe No.8112
Feature
■ SK-110TRHII series has five varieties of different shaped probes to meet
various applications.
* Probes are not detachable.
■ Large LCD for easy reading (each figure is 13 mm in height)
■ Simple operation with just only a power key
■ Slim body to enable the best of handy use
■ Carrying case to safely store the main unit and the long probe together
is attached.
Description
Probe is not detachable.
SPECIFICATIONS :
■ SK-110TRHII series has five varieties of different shaped probes to meet
various applications.
* Probes are not detachable.
■ Large LCD for easy reading (each figure is 13 mm in height)
■ Simple operation with just only a power key
■ Slim body to enable the best of handy use
■ Carrying case to safely store the main unit and the long probe together
is attached.
Description
Probe is not detachable.
SPECIFICATIONS :
| Cat. no. | 8112-00 | |||||
| Product name | Digital Thermohygrometer with Penetration Probe | |||||
|
Model name
|
SK-110TRHII Type 2 | |||||
|
Measuring
range |
Temperature
|
-10 to 60.0°C
|
||||
|
Humidity
|
20.0 to 98.0%rh at 23°C, refer to the graph below this table
|
|||||
|
Accuracy
|
Temperature
|
±0.5°C (15 to 35°C)
±1°C (other) |
||||
|
Humidity
|
Refer to the graph below this table
|
|||||
|
Resolution
|
Temperature
|
0.1°C (except −10°C)
1°C (−10°C) |
||||
|
Humidity
|
0.1%rh (15.0%rh and up)
1%rh (less than 15.0%rh) |
|||||
|
Operation ambient
|
Main unit: 0 to 50°C
Probe: −10 to 60°C without condensing |
|||||
|
Refresh time
|
1 second
|
|||||
|
Materials
|
Main body |
ABS resin, acrylic glass
|
||||
| Probe |
Stainless steel, aluminum
|
|||||
| Cable | PVC | |||||
|
Dimensions |
Main body |
70 (W) x 168 (H) x 26.5 (D) mm except protrusion
|
||||
| Probe | Grip part: 20 mm diameter x 224 mm (L) Sensing part: 9 mm dia. x 55 mm (L) + 8 mm dia. x 294 mm (L) |
|||||
| Cable | 4 mm dia. x 960 mm (L) | |||||
|
Weight
|
330 g including batteries
|
|||||
|
Power
|
AAA alkaline battery x2
|
|||||
|
Battery life
|
600 hours in continuous use under room temperature
|
|||||
|
Standard accessories
|
AAA battery x2, hand strap x1, carrying case x1, test result, instruction manua
|
|||||
